Custom Alerts Using Prometheus Queries
Introduction
Prometheus is an open-source system for monitoring and alerting originally developed by Soundcloud. It moved to Cloud Native Computing Federation (CNCF) in 2016 and became one of the most popular projects after Kubernetes. It can monitor everything from an entire Linux server to a stand-alone web server, a database service or a single process. In Prometheus terminology, the things it monitors are called Targets. Each unit of a target is called a metric. It pulls (scrapes) targets over http, at a set interval, to collect metrics and places the data in its time-series database. You can use the PromQL query language to query metrics about targets.
In this article, we will show a step-by-step setup guide on how to:
- Install Prometheus (using prometheus-operator Helm chart) to monitor/alert based on custom events.
- Write and configure custom alerting rules, which will fire alerts when conditions are met.
- Integrate Alertmanager to handle these alerts sent by client applications (Prometheus server in this case).

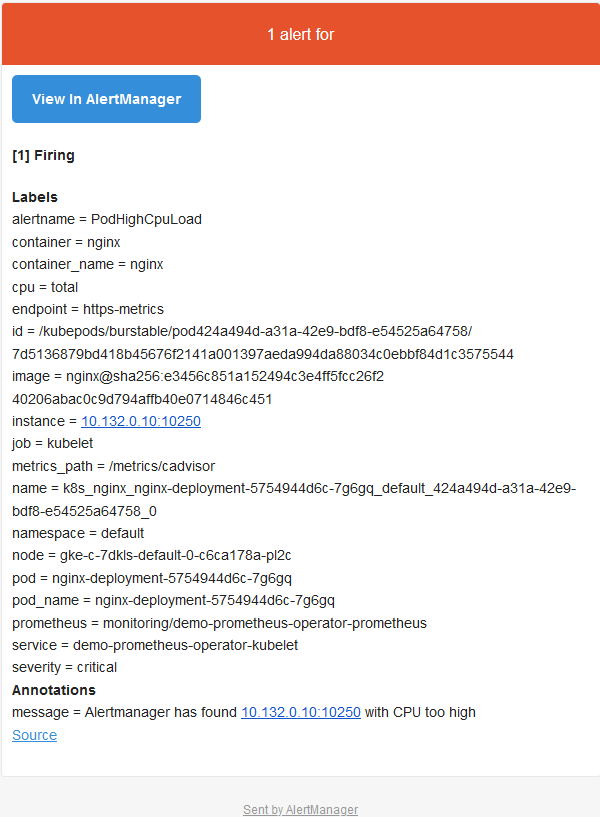

- Integrate Alertmanager with a mail account where notifications will be sent.
Understanding Prometheus and its Abstractions

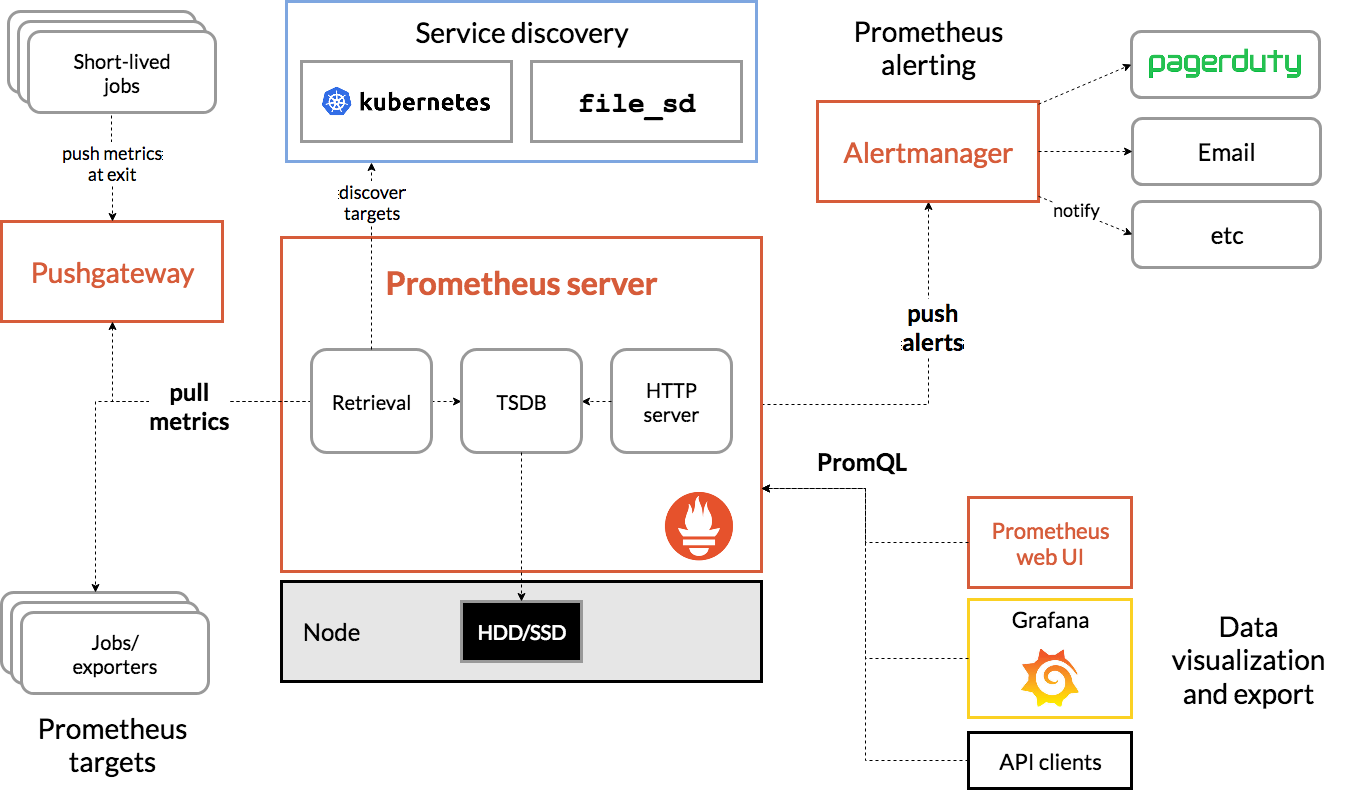

Below we can see below all the components that form the Prometheus ecosystem.
All of the components in the Prometheus ecosystem (credit http://prometheus.io)
Here’s a quick review of the terms that are relevant to this exercise:
- Prometheus Server: main component that scrapes and stores metrics in a time series database.
- Scrape: pulling method to retrieve metrics; it happens at a ‘scrape_interval’ usually of 10-60 seconds.
- Target: server client where data gets retrieved.
- Service Discovery: enables Prometheus to identify the applications it needs to monitor and pull metrics from within a dynamic environment.
- Alert Manager: component responsible for handling alerts (silencing, inhibition, aggregation and sending out notifications via methods such as email, PagerDuty, Slack, etc.)
- Data Visualization: scraped data is stored in local storage and queried directly using PromQL or viewed via Grafana dashboards.
Understanding the Prometheus Operator
According to CoreOS, owners of the Prometheus Operator project, it makes the Prometheus configuration Kubernetes native and manages and operates Prometheus and Alertmanager clusters.
The Operator introduces the following Kubernetes custom resource definitions (CRDs): Prometheus, ServiceMonitor, PrometheusRule and Alertmanager. Get more details about these here. In our demo, we’ll use PrometheusRule to define custom rules.
To install, we will use the stable/prometheus-operator Helm chart.
The default installation deploys the following components: prometheus-operator, prometheus, alertmanager, node-exporter, kube-state-metrics and grafana. By default, Prometheus scrapes the main Kubernetes components: kube-apiserver, kube-scheduler, kube-controller-manager and etcd.
Installing Prometheus Software
Prerequisites
To perform this demo, you will need the following:
- A Google Cloud Platform account (the free tier provided is more than enough). Any other cloud should work the same.
- Rancher v2.3.5 (latest version at time of publication).
- A Kubernetes cluster running on Google Kubernetes Engine version 1.15.9-gke.12. (Running EKS or AKS should be the same).
- Helm binary installed on a working machine.
Starting a Rancher instance
Follow this intuitive getting started guide.
Using Rancher to Deploy a GKE Cluster
Use Rancher to set up and configure your Kubernetes cluster. Follow the how-to guide.
As soon as this operation is ready and you have configured the kubeconfig file with appropriate credentials and endpoint information, you can make use of kubectl to point to that specific cluster.
Deploying Prometheus Software
Let’s check what Helm version are we running.
$ helm version
version.BuildInfo{Version:"v3.1.2", GitCommit:"d878d4d45863e42fd5cff6743294a11d28a9abce", GitTreeState:"clean", GoVersion:"go1.13.8"}As we are using Helm 3, we will need to add the stable repository, as this is not set by default.
$ helm repo add stable https://kubernetes-charts.storage.googleapis.com
"stable" has been added to your repositories$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "stable" chart repository
Update Complete. ⎈ Happy Helming!⎈$ helm repo list
NAME URL
stable https://kubernetes-charts.storage.googleapis.comWith Helm configured, we can proceed with the installation of prometheus-operator.
$ kubectl create namespace monitoring
namespace/monitoring created$ helm install --namespace monitoring demo stable/prometheus-operator
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
NAME: demo
LAST DEPLOYED: Sat Mar 14 09:40:35 2020
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1
NOTES:
The Prometheus Operator has been installed. Check its status by running:
kubectl --namespace monitoring get pods -l "release=demo"
Visit https://github.com/coreos/prometheus-operator for instructions on how
to create & configure Alertmanager and Prometheus instances using the Operator.Rules
Besides monitoring, Prometheus allows us to have rules that should trigger alerts. These rules are based on Prometheus expression language expressions. Whenever a condition is met, the alert is fired and sent to Alertmanager. Later, we’ll see what a rule looks like.
Let’s get back to our demo. As soon as Helm has finished the deployment we can check what pods have been created:
$ kubectl -n monitoring get pods
NAME READY STATUS RESTARTS AGE
alertmanager-demo-prometheus-operator-alertmanager-0 2/2 Running 0 61s
demo-grafana-5576fbf669-9l57b 3/3 Running 0 72s
demo-kube-state-metrics-67bf64b7f4-4786k 1/1 Running 0 72s
demo-prometheus-node-exporter-ll8zx 1/1 Running 0 72s
demo-prometheus-node-exporter-nqnr6 1/1 Running 0 72s
demo-prometheus-node-exporter-sdndf 1/1 Running 0 72s
demo-prometheus-operator-operator-b9c9b5457-db9dj 2/2 Running 0 72s
prometheus-demo-prometheus-operator-prometheus-0 3/3 Running 1 50sIn order to access Prometheus and Alertmanager from a Web browser, we need to use port forwarding.

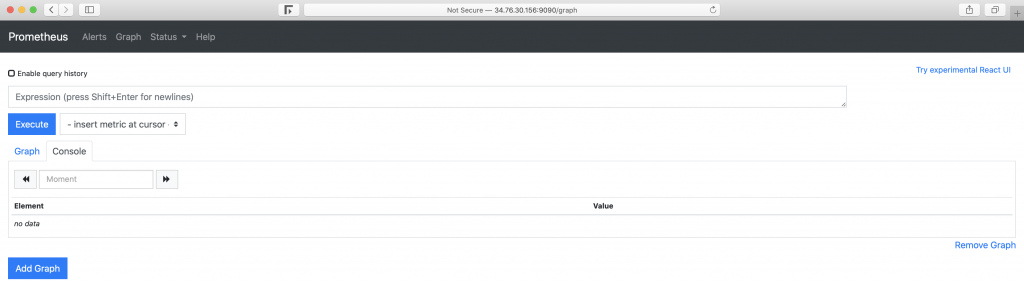

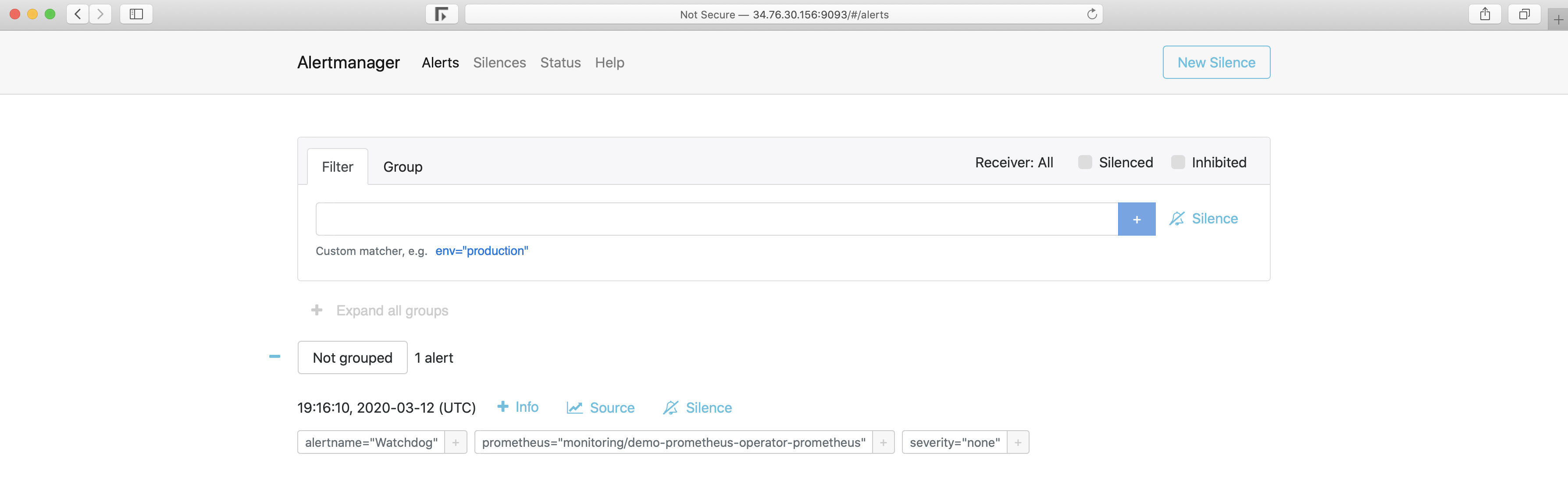

As this demo uses a GCP instance, and all kubectl commands are run from this instance, we use the instance’s external IP address to access the resources.
$ kubectl port-forward --address 0.0.0.0 -n monitoring prometheus-demo-prometheus-operator-prometheus-0 9090 >/dev/null 2>&1 &
$ kubectl port-forward --address 0.0.0.0 -n monitoring alertmanager-demo-prometheus-operator-alertmanager-0 9093 >/dev/null 2>&1 &

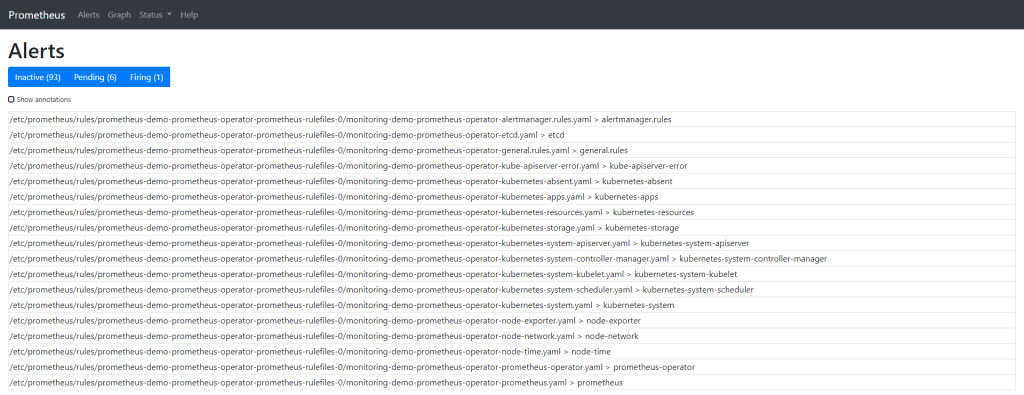

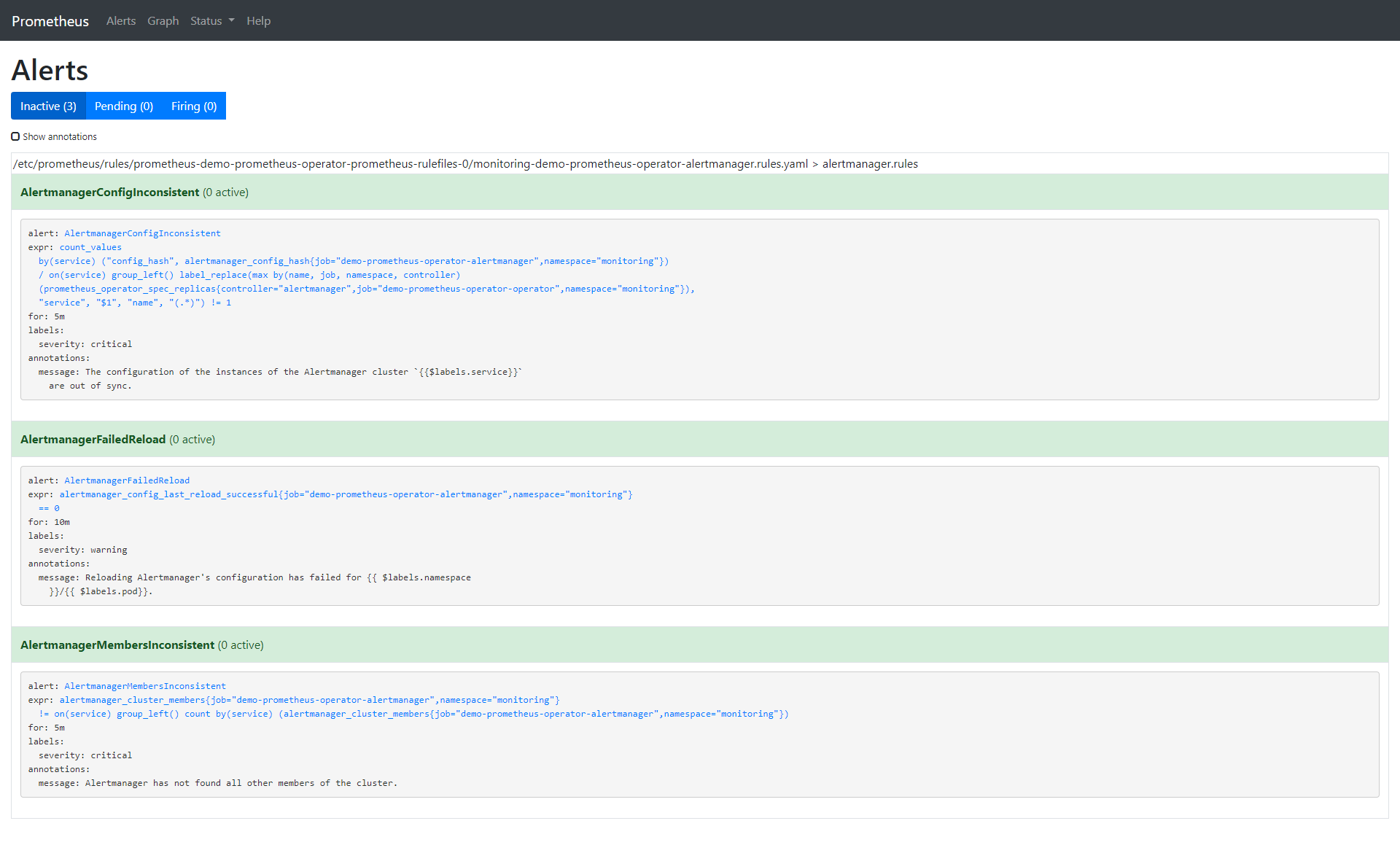

The Alerts tab from Prometheus UI shows us all the currently running/configured alerts. This can be checked from CLI as well by querying the CRD called prometheusrules:
$ kubectl -n monitoring get prometheusrules
NAME AGE
demo-prometheus-operator-alertmanager.rules 3m21s
demo-prometheus-operator-etcd 3m21s
demo-prometheus-operator-general.rules 3m21s
demo-prometheus-operator-k8s.rules 3m21s
demo-prometheus-operator-kube-apiserver-error 3m21s
demo-prometheus-operator-kube-apiserver.rules 3m21s
demo-prometheus-operator-kube-prometheus-node-recording.rules 3m21s
demo-prometheus-operator-kube-scheduler.rules 3m21s
demo-prometheus-operator-kubernetes-absent 3m21s
demo-prometheus-operator-kubernetes-apps 3m21s
demo-prometheus-operator-kubernetes-resources 3m21s
demo-prometheus-operator-kubernetes-storage 3m21s
demo-prometheus-operator-kubernetes-system 3m21s
demo-prometheus-operator-kubernetes-system-apiserver 3m21s
demo-prometheus-operator-kubernetes-system-controller-manager 3m21s
demo-prometheus-operator-kubernetes-system-kubelet 3m21s
demo-prometheus-operator-kubernetes-system-scheduler 3m21s
demo-prometheus-operator-node-exporter 3m21s
demo-prometheus-operator-node-exporter.rules 3m21s
demo-prometheus-operator-node-network 3m21s
demo-prometheus-operator-node-time 3m21s
demo-prometheus-operator-node.rules 3m21s
demo-prometheus-operator-prometheus 3m21s
demo-prometheus-operator-prometheus-operator 3m21sWe can check the physical files as well, located in prometheus-operator Pod, in prometheus container.
$ kubectl -n monitoring exec -it prometheus-demo-prometheus-operator-prometheus-0 -- /bin/sh
Defaulting container name to prometheus.
Use 'kubectl describe pod/prometheus-demo-prometheus-operator-prometheus-0 -n monitoring' to see all of the containers in this pod.Inside the container, we can check the path where rules are stored:
/prometheus $ ls /etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0/
monitoring-demo-prometheus-operator-alertmanager.rules.yaml monitoring-demo-prometheus-operator-kubernetes-system-apiserver.yaml
monitoring-demo-prometheus-operator-etcd.yaml monitoring-demo-prometheus-operator-kubernetes-system-controller-manager.yaml
monitoring-demo-prometheus-operator-general.rules.yaml monitoring-demo-prometheus-operator-kubernetes-system-kubelet.yaml
monitoring-demo-prometheus-operator-k8s.rules.yaml monitoring-demo-prometheus-operator-kubernetes-system-scheduler.yaml
monitoring-demo-prometheus-operator-kube-apiserver-error.yaml monitoring-demo-prometheus-operator-kubernetes-system.yaml
monitoring-demo-prometheus-operator-kube-apiserver.rules.yaml monitoring-demo-prometheus-operator-node-exporter.rules.yaml
monitoring-demo-prometheus-operator-kube-prometheus-node-recording.rules.yaml monitoring-demo-prometheus-operator-node-exporter.yaml
monitoring-demo-prometheus-operator-kube-scheduler.rules.yaml monitoring-demo-prometheus-operator-node-network.yaml
monitoring-demo-prometheus-operator-kubernetes-absent.yaml monitoring-demo-prometheus-operator-node-time.yaml
monitoring-demo-prometheus-operator-kubernetes-apps.yaml monitoring-demo-prometheus-operator-node.rules.yaml
monitoring-demo-prometheus-operator-kubernetes-resources.yaml monitoring-demo-prometheus-operator-prometheus-operator.yaml
monitoring-demo-prometheus-operator-kubernetes-storage.yaml monitoring-demo-prometheus-operator-prometheus.yamlTo understand more on how these rules are loaded into Prometheus, let’s check the Pod’s details. We can see that the config file used for the prometheus container is etc/prometheus/config_out/prometheus.env.yaml. This config file will show us the location of the files or the frequency set for yaml files to be rechecked.
$ kubectl -n monitoring describe pod prometheus-demo-prometheus-operator-prometheus-0Click for full command output
Name: prometheus-demo-prometheus-operator-prometheus-0
Namespace: monitoring
Priority: 0
Node: gke-c-7dkls-default-0-c6ca178a-gmcq/10.132.0.15
Start Time: Wed, 11 Mar 2020 18:06:47 +0000
Labels: app=prometheus
controller-revision-hash=prometheus-demo-prometheus-operator-prometheus-5ccbbd8578
prometheus=demo-prometheus-operator-prometheus
statefulset.kubernetes.io/pod-name=prometheus-demo-prometheus-operator-prometheus-0
Annotations: <none>
Status: Running
IP: 10.40.0.7
IPs: <none>
Controlled By: StatefulSet/prometheus-demo-prometheus-operator-prometheus
Containers:
prometheus:
Container ID: docker://360db8a9f1cce8d72edd81fcdf8c03fe75992e6c2c59198b89807aa0ce03454c
Image: quay.io/prometheus/prometheus:v2.15.2
Image ID: docker-pullable://quay.io/prometheus/prometheus@sha256:914525123cf76a15a6aaeac069fcb445ce8fb125113d1bc5b15854bc1e8b6353
Port: 9090/TCP
Host Port: 0/TCP
Args:
--web.console.templates=/etc/prometheus/consoles
--web.console.libraries=/etc/prometheus/console_libraries
--config.file=/etc/prometheus/config_out/prometheus.env.yaml
--storage.tsdb.path=/prometheus
--storage.tsdb.retention.time=10d
--web.enable-lifecycle
--storage.tsdb.no-lockfile
--web.external-url=http://demo-prometheus-operator-prometheus.monitoring:9090
--web.route-prefix=/
State: Running
Started: Wed, 11 Mar 2020 18:07:07 +0000
Last State: Terminated
Reason: Error
Message: caller=main.go:648 msg="Starting TSDB ..."
level=info ts=2020-03-11T18:07:02.185Z caller=web.go:506 component=web msg="Start listening for connections" address=0.0.0.0:9090
level=info ts=2020-03-11T18:07:02.192Z caller=head.go:584 component=tsdb msg="replaying WAL, this may take awhile"
level=info ts=2020-03-11T18:07:02.192Z caller=head.go:632 component=tsdb msg="WAL segment loaded" segment=0 maxSegment=0
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:663 fs_type=EXT4_SUPER_MAGIC
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:664 msg="TSDB started"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:734 msg="Loading configuration file" filename=/etc/prometheus/config_out/prometheus.env.yaml
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:517 msg="Stopping scrape discovery manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:531 msg="Stopping notify discovery manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:553 msg="Stopping scrape manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=manager.go:814 component="rule manager" msg="Stopping rule manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=manager.go:820 component="rule manager" msg="Rule manager stopped"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:513 msg="Scrape discovery manager stopped"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:527 msg="Notify discovery manager stopped"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:547 msg="Scrape manager stopped"
level=info ts=2020-03-11T18:07:02.197Z caller=notifier.go:598 component=notifier msg="Stopping notification manager..."
level=info ts=2020-03-11T18:07:02.197Z caller=main.go:718 msg="Notifier manager stopped"
level=error ts=2020-03-11T18:07:02.197Z caller=main.go:727 err="error loading config from "/etc/prometheus/config_out/prometheus.env.yaml": couldn't load configuration (--config.file="/etc/prometheus/config_out/prometheus.env.yaml"): open /etc/prometheus/config_out/prometheus.env.yaml: no such file or directory"
Exit Code: 1
Started: Wed, 11 Mar 2020 18:07:02 +0000
Finished: Wed, 11 Mar 2020 18:07:02 +0000
Ready: True
Restart Count: 1
Liveness: http-get http://:web/-/healthy delay=0s timeout=3s period=5s #success=1 #failure=6
Readiness: http-get http://:web/-/ready delay=0s timeout=3s period=5s #success=1 #failure=120
Environment: <none>
Mounts:
/etc/prometheus/certs from tls-assets (ro)
/etc/prometheus/config_out from config-out (ro)
/etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0 from prometheus-demo-prometheus-operator-prometheus-rulefiles-0 (rw)
/prometheus from prometheus-demo-prometheus-operator-prometheus-db (rw)
/var/run/secrets/kubernetes.io/serviceaccount from demo-prometheus-operator-prometheus-token-jvbrr (ro)
prometheus-config-reloader:
Container ID: docker://de27cdad7067ebd5154c61b918401b2544299c161850daf3e317311d2d17af3d
Image: quay.io/coreos/prometheus-config-reloader:v0.37.0
Image ID: docker-pullable://quay.io/coreos/prometheus-config-reloader@sha256:5e870e7a99d55a5ccf086063efd3263445a63732bc4c04b05cf8b664f4d0246e
Port: <none>
Host Port: <none>
Command:
/bin/prometheus-config-reloader
Args:
--log-format=logfmt
--reload-url=http://127.0.0.1:9090/-/reload
--config-file=/etc/prometheus/config/prometheus.yaml.gz
--config-envsubst-file=/etc/prometheus/config_out/prometheus.env.yaml
State: Running
Started: Wed, 11 Mar 2020 18:07:04 +0000
Ready: True
Restart Count: 0
Limits:
cpu: 100m
memory: 25Mi
Requests:
cpu: 100m
memory: 25Mi
Environment:
POD_NAME: prometheus-demo-prometheus-operator-prometheus-0 (v1:metadata.name)
Mounts:
/etc/prometheus/config from config (rw)
/etc/prometheus/config_out from config-out (rw)
/var/run/secrets/kubernetes.io/serviceaccount from demo-prometheus-operator-prometheus-token-jvbrr (ro)
rules-configmap-reloader:
Container ID: docker://5804e45380ed1b5374a4c2c9ee4c9c4e365bee93b9ccd8b5a21f50886ea81a91
Image: quay.io/coreos/configmap-reload:v0.0.1
Image ID: docker-pullable://quay.io/coreos/configmap-reload@sha256:e2fd60ff0ae4500a75b80ebaa30e0e7deba9ad107833e8ca53f0047c42c5a057
Port: <none>
Host Port: <none>
Args:
--webhook-url=http://127.0.0.1:9090/-/reload
--volume-dir=/etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0
State: Running
Started: Wed, 11 Mar 2020 18:07:06 +0000
Ready: True
Restart Count: 0
Limits:
cpu: 100m
memory: 25Mi
Requests:
cpu: 100m
memory: 25Mi
Environment: <none>
Mounts:
/etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0 from prometheus-demo-prometheus-operator-prometheus-rulefiles-0 (rw)
/var/run/secrets/kubernetes.io/serviceaccount from demo-prometheus-operator-prometheus-token-jvbrr (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
config:
Type: Secret (a volume populated by a Secret)
SecretName: prometheus-demo-prometheus-operator-prometheus
Optional: false
tls-assets:
Type: Secret (a volume populated by a Secret)
SecretName: prometheus-demo-prometheus-operator-prometheus-tls-assets
Optional: false
config-out:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
prometheus-demo-prometheus-operator-prometheus-rulefiles-0:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: prometheus-demo-prometheus-operator-prometheus-rulefiles-0
Optional: false
prometheus-demo-prometheus-operator-prometheus-db:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
demo-prometheus-operator-prometheus-token-jvbrr:
Type: Secret (a volume populated by a Secret)
SecretName: demo-prometheus-operator-prometheus-token-jvbrr
Optional: false
QoS Class: Burstable
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 4m51s default-scheduler Successfully assigned monitoring/prometheus-demo-prometheus-operator-prometheus-0 to gke-c-7dkls-default-0-c6ca178a-gmcq
Normal Pulling 4m45s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Pulling image "quay.io/prometheus/prometheus:v2.15.2"
Normal Pulled 4m39s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Successfully pulled image "quay.io/prometheus/prometheus:v2.15.2"
Normal Pulling 4m36s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Pulling image "quay.io/coreos/prometheus-config-reloader:v0.37.0"
Normal Pulled 4m35s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Successfully pulled image "quay.io/coreos/prometheus-config-reloader:v0.37.0"
Normal Pulling 4m34s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Pulling image "quay.io/coreos/configmap-reload:v0.0.1"
Normal Started 4m34s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Started container prometheus-config-reloader
Normal Created 4m34s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Created container prometheus-config-reloader
Normal Pulled 4m33s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Successfully pulled image "quay.io/coreos/configmap-reload:v0.0.1"
Normal Created 4m32s (x2 over 4m36s) kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Created container prometheus
Normal Created 4m32s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Created container rules-configmap-reloader
Normal Started 4m32s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Started container rules-configmap-reloader
Normal Pulled 4m32s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Container image "quay.io/prometheus/prometheus:v2.15.2" already present on machine
Normal Started 4m31s (x2 over 4m36s) kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Started container prometheusLet’s clean up the default rules, so we can better observe the one that we’ll create. The command below deletes all rules, but leaves only one standing, the first one, called monitoring-demo-prometheus-operator-alertmanager.rules.
$ kubectl -n monitoring delete prometheusrules $(kubectl -n monitoring get prometheusrules | grep -v alert)$ kubectl -n monitoring get prometheusrules
NAME AGE
demo-prometheus-operator-alertmanager.rules 8m53sOBS: We left one rule only just to make this demo easier. But there is a rule that you should never delete. This sits in monitoring-demo-prometheus-operator-general.rules.yaml and it is called Watchdog. The alert is always firing and its purpose is to ensure that the entire alerting pipeline is functional.
Let’s check from CLI the rule we left and compare it with what we will see in the browser.
$ kubectl -n monitoring describe prometheusrule demo-prometheus-operator-alertmanager.rules
Name: demo-prometheus-operator-alertmanager.rules
Namespace: monitoring
Labels: app=prometheus-operator
chart=prometheus-operator-8.12.1
heritage=Tiller
release=demo
Annotations: prometheus-operator-validated: true
API Version: monitoring.coreos.com/v1
Kind: PrometheusRule
Metadata:
Creation Timestamp: 2020-03-11T18:06:25Z
Generation: 1
Resource Version: 4871
Self Link: /apis/monitoring.coreos.com/v1/namespaces/monitoring/prometheusrules/demo-prometheus-operator-alertmanager.rules
UID: 6a84dbb0-feba-4f17-b3dc-4b6486818bc0
Spec:
Groups:
Name: alertmanager.rules
Rules:
Alert: AlertmanagerConfigInconsistent
Annotations:
Message: The configuration of the instances of the Alertmanager cluster `{{$labels.service}}` are out of sync.
Expr: count_values("config_hash", alertmanager_config_hash{job="demo-prometheus-operator-alertmanager",namespace="monitoring"}) BY (service) / ON(service) GROUP_LEFT() label_replace(max(prometheus_operator_spec_replicas{job="demo-prometheus-operator-operator",namespace="monitoring",controller="alertmanager"}) by (name, job, namespace, controller), "service", "$1", "name", "(.*)") != 1
For: 5m
Labels:
Severity: critical
Alert: AlertmanagerFailedReload
Annotations:
Message: Reloading Alertmanager's configuration has failed for {{ $labels.namespace }}/{{ $labels.pod}}.
Expr: alertmanager_config_last_reload_successful{job="demo-prometheus-operator-alertmanager",namespace="monitoring"} == 0
For: 10m
Labels:
Severity: warning
Alert: AlertmanagerMembersInconsistent
Annotations:
Message: Alertmanager has not found all other members of the cluster.
Expr: alertmanager_cluster_members{job="demo-prometheus-operator-alertmanager",namespace="monitoring"}
!= on (service) GROUP_LEFT()
count by (service) (alertmanager_cluster_members{job="demo-prometheus-operator-alertmanager",namespace="monitoring"})
For: 5m
Labels:
Severity: critical
Events: <none>
Let’s remove all three default alerts and create one of our own:
$ kubectl -n monitoring edit prometheusrules demo-prometheus-operator-alertmanager.rules
prometheusrule.monitoring.coreos.com/demo-prometheus-operator-alertmanager.rules editedOur custom alert looks like this:
$ kubectl -n monitoring describe prometheusrule demo-prometheus-operator-alertmanager.rules
Name: demo-prometheus-operator-alertmanager.rules
Namespace: monitoring
Labels: app=prometheus-operator
chart=prometheus-operator-8.12.1
heritage=Tiller
release=demo
Annotations: prometheus-operator-validated: true
API Version: monitoring.coreos.com/v1
Kind: PrometheusRule
Metadata:
Creation Timestamp: 2020-03-11T18:06:25Z
Generation: 3
Resource Version: 18180
Self Link: /apis/monitoring.coreos.com/v1/namespaces/monitoring/prometheusrules/demo-prometheus-operator-alertmanager.rules
UID: 6a84dbb0-feba-4f17-b3dc-4b6486818bc0
Spec:
Groups:
Name: alertmanager.rules
Rules:
Alert: PodHighCpuLoad
Annotations:
Message: Alertmanager has found {{ $labels.instance }} with CPU too high
Expr: rate (container_cpu_usage_seconds_total{pod_name=~"nginx-.*", image!="", container!="POD"}[5m]) > 0.04
For: 1m
Labels:
Severity: critical
Events: <none>
Here are the options for the alert we created:
- annotations: set of informational labels describing the alert.
- expr: expression written in PromQL.
- for: optional parameter, if set will tell Prometheus to check that the alert continues to be active during the defined period. The alert will be fired only after this duration.
- labels: additional labels that can be attached to the alert.
More information about alerts can be found here
Now that we’re finished with Prometheus alerts, let’s configure Alertmanager so as soon as it gets the our alert it will notify us via email. Alertmanager’s configuration sits in a Kubernetes Secrets object.
$ kubectl get secrets -n monitoring
NAME TYPE DATA AGE
alertmanager-demo-prometheus-operator-alertmanager Opaque 1 32m
default-token-x4rgq kubernetes.io/service-account-token 3 37m
demo-grafana Opaque 3 32m
demo-grafana-test-token-p6qnk kubernetes.io/service-account-token 3 32m
demo-grafana-token-ff6nl kubernetes.io/service-account-token 3 32m
demo-kube-state-metrics-token-vmvbr kubernetes.io/service-account-token 3 32m
demo-prometheus-node-exporter-token-wlnk9 kubernetes.io/service-account-token 3 32m
demo-prometheus-operator-admission Opaque 3 32m
demo-prometheus-operator-alertmanager-token-rrx4k kubernetes.io/service-account-token 3 32m
demo-prometheus-operator-operator-token-q9744 kubernetes.io/service-account-token 3 32m
demo-prometheus-operator-prometheus-token-jvbrr kubernetes.io/service-account-token 3 32m
prometheus-demo-prometheus-operator-prometheus Opaque 1 31m
prometheus-demo-prometheus-operator-prometheus-tls-assets Opaque 0 31mWe’re interested only in alertmanager-demo-prometheus-operator-alertmanager. Let’s look at it:
kubectl -n monitoring get secret alertmanager-demo-prometheus-operator-alertmanager -o yaml
apiVersion: v1
data:
alertmanager.yaml: Z2xvYmFsOgogIHJlc29sdmVfdGltZW91dDogNW0KcmVjZWl2ZXJzOgotIG5hbWU6ICJudWxsIgpyb3V0ZToKICBncm91cF9ieToKICAtIGpvYgogIGdyb3VwX2ludGVydmFsOiA1bQogIGdyb3VwX3dhaXQ6IDMwcwogIHJlY2VpdmVyOiAibnVsbCIKICByZXBlYXRfaW50ZXJ2YWw6IDEyaAogIHJvdXRlczoKICAtIG1hdGNoOgogICAgICBhbGVydG5hbWU6IFdhdGNoZG9nCiAgICByZWNlaXZlcjogIm51bGwiCg==
kind: Secret
metadata:
creationTimestamp: "2020-03-11T18:06:24Z"
labels:
app: prometheus-operator-alertmanager
chart: prometheus-operator-8.12.1
heritage: Tiller
release: demo
name: alertmanager-demo-prometheus-operator-alertmanager
namespace: monitoring
resourceVersion: "3018"
selfLink: /api/v1/namespaces/monitoring/secrets/alertmanager-demo-prometheus-operator-alertmanager
uid: 6baf6883-f690-47a1-bb49-491935956c22
type: Opaquealertmanager.yaml field is encoded with base64. Let’s see what’s inside:
$ echo 'Z2xvYmFsOgogIHJlc29sdmVfdGltZW91dDogNW0KcmVjZWl2ZXJzOgotIG5hbWU6ICJudWxsIgpyb3V0ZToKICBncm91cF9ieToKICAtIGpvYgogIGdyb3VwX2ludGVydmFsOiA1bQogIGdyb3VwX3dhaXQ6IDMwcwogIHJlY2VpdmVyOiAibnVsbCIKICByZXBlYXRfaW50ZXJ2YWw6IDEyaAogIHJvdXRlczoKICAtIG1hdGNoOgogICAgICBhbGVydG5hbWU6IFdhdGNoZG9nCiAgICByZWNlaXZlcjogIm51bGwiCg==' | base64 --decode
global:
resolve_timeout: 5m
receivers:
- name: "null"
route:
group_by:
- job
group_interval: 5m
group_wait: 30s
receiver: "null"
repeat_interval: 12h
routes:
- match:
alertname: Watchdog
receiver: "null"As we can see, this is the default Alertmanager configuration. You can also see this configuration in Status tab of the Alertmanager UI. Let’s change it with one that will actually do something – in our case, send emails:
$ cat alertmanager.yaml
global:
resolve_timeout: 5m
route:
group_by: [Alertname]
# Send all notifications to me.
receiver: demo-alert
group_wait: 30s
group_interval: 5m
repeat_interval: 12h
routes:
- match:
alertname: DemoAlertName
receiver: 'demo-alert'
receivers:
- name: demo-alert
email_configs:
- to: your_email@gmail.com
from: from_email@gmail.com
# Your smtp server address
smarthost: smtp.gmail.com:587
auth_username: from_email@gmail.com
auth_identity: from_email@gmail.com
auth_password: 16letter_generated token # you can use gmail account password, but better create a dedicated token for this
headers:
From: from_email@gmail.com
Subject: 'Demo ALERT'First, we need to encode this:
$ cat alertmanager.yaml | base64 -w0Once we get the encoded output, we need to fill it in the below yaml file that we will apply:
cat alertmanager-secret-k8s.yaml
apiVersion: v1
data:
alertmanager.yaml: <paste here de encoded content of alertmanager.yaml>
kind: Secret
metadata:
name: alertmanager-demo-prometheus-operator-alertmanager
namespace: monitoring
type: Opaque$ kubectl apply -f alertmanager-secret-k8s.yaml
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply

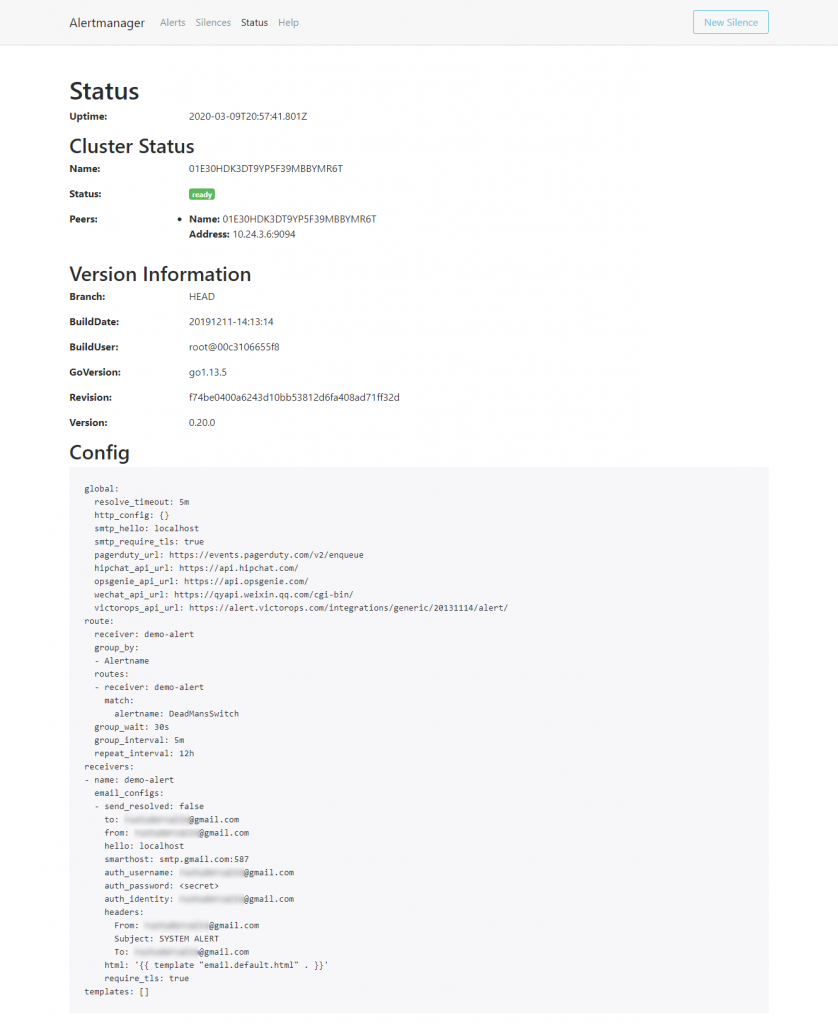

secret/alertmanager-demo-prometheus-operator-alertmanager configuredThe configuration is automatically reloaded and the changes are present in UI as well.
Let’s deploy something to monitor. A simple nginx deployment should be enough for this exercise:
$ cat nginx-deployment.yaml
apiVersion: apps/v1 # for versions before 1.9.0 use apps/v1beta2
kind: Deployment
metadata:
name: nginx-deployment
spec:
selector:
matchLabels:
app: nginx
replicas: 3 # tells deployment to run 2 pods matching the template
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.7.9
ports:
- containerPort: 80$ kubectl apply -f nginx-deployment.yaml
deployment.apps/nginx-deployment createdWe have three replicas, as per our configuration yaml:
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
nginx-deployment-5754944d6c-7g6gq 1/1 Running 0 67s
nginx-deployment-5754944d6c-lhvx8 1/1 Running 0 67s

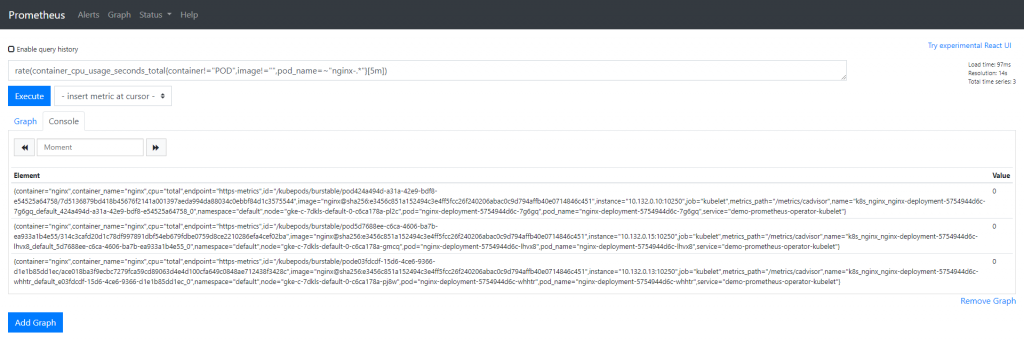

nginx-deployment-5754944d6c-whhtr 1/1 Running 0 67sIn the Prometheus UI, using the same expression we configured for the alert:
rate (container_cpu_usage_seconds_total{pod_name=~"nginx-.*", image!="", container!="POD"}[5m])we can check the data for these Pods. The value for all the Pods should be 0.
Let’s put some load in one of the Pods to see the value change. When the value is greater than 0.04, we should have an alert:
$ kubectl exec -it nginx-deployment-5754944d6c-7g6gq -- /bin/sh
# yes > /dev/nullThe alert has three phases:
- Inactive – condition is not met.
- Pending – condition is met.
- Firing – alert is fired.

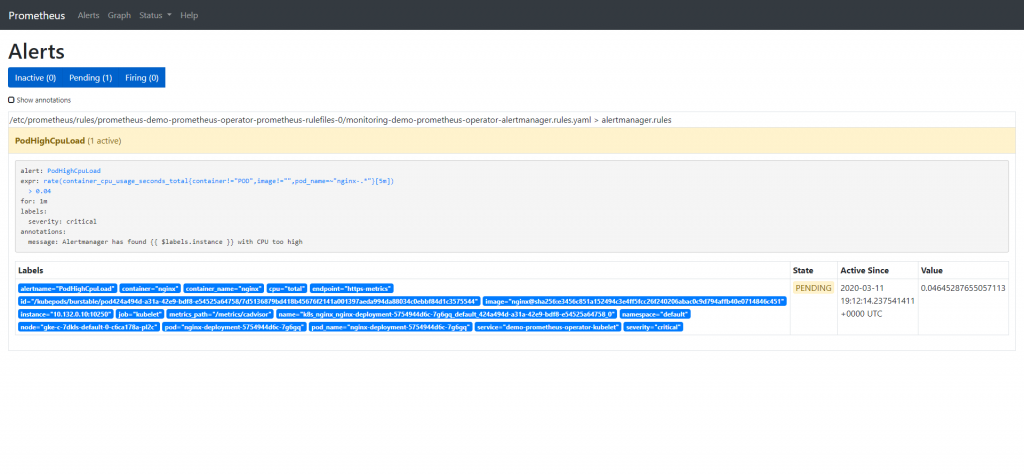

We already saw the alert in inactive state, so puting some load on the CPU will let us observe the rest of them, too:

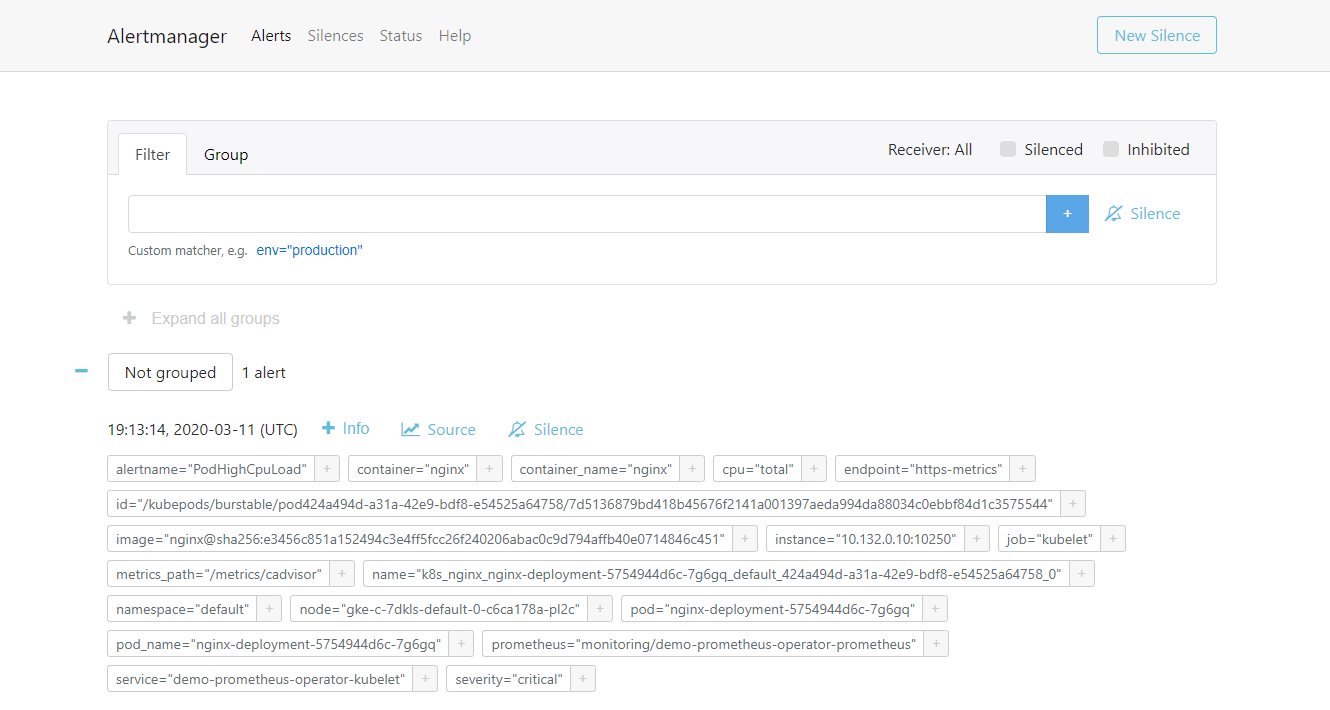

As soon as the alert is fired, this will be present in Alertmanager.
Alertmanager is configured to send emails when we receive alerts. If we check the inbox, we’ll see something like this:
Conclusion
We know how important monitoring is, but it would not be complete without alerting. Alerts can notify us as soon as a problem occurs, letting us know immediately when something goes wrong with our system. Prometheus covers both of these aspects – monitoring the solution and alerting via its Alertmanager component. We saw how alerts are defined in Prometheus configuration and how alerts reach Alertmanager when fired. From here based on the definition/integration of Alertmanager we received an email with details of the triggered alert (this can also be sent via Slack or PagerDuty).
Next Steps
Join our Master Class: Monitoring and Alerting with Prometheus & Grafana on March 24th.
Related Articles
Sep 12th, 2023
Getting Started with Cluster Autoscaling in Kubernetes
Jan 30th, 2023
